StreamView® Open Network Management System
PolarSat’s StreamView Open is a Network Management System (NMS) that provides a live dashboard for the entire VSAT system and interconnecting terrestrial network devices. The NMS provides displays of the network topology, individual station configurations and status, network configuration and control functions, alarm detection and response, and network management access control. It controls the VSAT Modem, RF, Multiplexer, and Routers though SNMP or optional serial port controls. The system is hosted on a Linux server and allows operators of various level access to screens shown below.
StreamView Open Dashboard
StreamView® Open DashBoard
The StreamView® Open features an easy-to-use graphical user interface which displays a network level dashboard. This dashboard gives the operator real-time health status of the network at a glance. A series of lower level (views and screens) provide the operator with deep network health monitoring for drilling down into any and all of the network equipment elements. From this dashboard the operator can select Key Performance Indicators (KPIs) performance screens to check throughput and uptime, select Engineering screens to see the real time status of the equipment, view Alarm logs to see what issues have arisen and review configuration screens to see recent changes.
StreamView Open Alarms screen
StreamView Open Alarms screen – Displays the Alarm Window which is the current alarm log. Color coding of each level of alarm, informs you immediately of network status. Individual alarms are logged and displayed and summary alarm reporting is provide (shown)
StreamView Open graphs and reporting example
StreamView Open Reporting Feature
Displays a list of predefined report types and you can generate custom graphs of any parameter or group of parameters. The graphs can provide value insight into the performance of the network over time and can output in report format for presentation or inclusion in other documents
StremView Open Engineering View
StreamView Open Engineering view

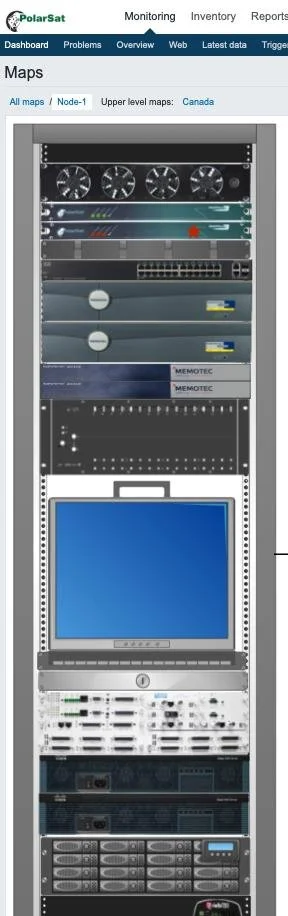

The StreamView engineering view supports a rack view of each earth station in the network by just clicking on the sites The StreamView operator can see what piece of equipment is in alarm since it is highlighted in red and then click on this equipment to bring up trouble shooting and configurations screens . The system displays the earth station alarm status for StreamView operator evaluation and action. The operator can generate hard copy reports of individual earth station displays, logs and summaries. In addition to the rack view there is a system block diagram view that shows the interconnection between the system elements as highlighted below
